Forsi offers a great range of filtration systems to cater for your water filtration and effluent filtration needs.

Water Filtration

Forsi Water Filtration Solutions

Because each need is different with variable levels of iron, manganese, ammonia, pH and flow, there is a wide range of models to suit both flow rates and the levels of iron and manganese.

The choice of model requires a simple water test combined with information provided about the flow rates to determine the model selection.

The Aquafier IM models come with either a single or double bowl configuration. The level of iron and manganese determines both the size of the bowls and if a second bowl is required.

Simply contact us and a recommendation will be made about the best fit.

Single Bowl Models

Forsi Walter Filtration Single Bowl Model

Scroll left or right to view table contents

TECHNICAL SPECIFICATIONS

Model Max Flow Rate (Lph) Power Requirements Phase Dimensions Pipe Size Suction Size
IM1-4 3,000 2.45Kw 24 Amp 1 910x720x1570mm 40mm F 40mm Union
IM1-28 6,000 2.57Kw 24 Amp 3 1060x880x1600mm 40mm F DN40 Flange PN6/10
IM1-32 8,000 3.3Kw 24 Amp 3 1200x1000x1600mm 40mm F DN65 Flange PN6/10
IM1-36 10,000 3.3Kw 24 Amp 3 1200x1000x1600mm 40mm F DN65 Flange PN6/10

Scroll left or right to view table contents

Double Bowl Models

Forsi Walter Filtration Double Bowl Model

Scroll left or right to view table contents

TECHNICAL SPECIFICATIONS

Model Max Flow Rate (Lph) Power Requirements Phase Dimensions Pipe Size Suction Size
IM2-4 4,000 2.57Kw 24 Amp 3 1155x895x1570mm 40mm F DN40 Flange PN6/10
IM2-28 7,000 3.3Kw 24 Amp 3 1530x1085x1600mm 40mm F DN65 Flange PN6/10
IM2-32 9,000 3.7Kw 24 Amp 3 1550x1100x1600mm 40mm F DN80 Flange PN6
IM2-36 12,000 3.7Kw 24 Amp 3 1740x1270x1600mm 40mm F DN80 Flange PN6

Scroll left or right to view table contents
Effluent Filtration

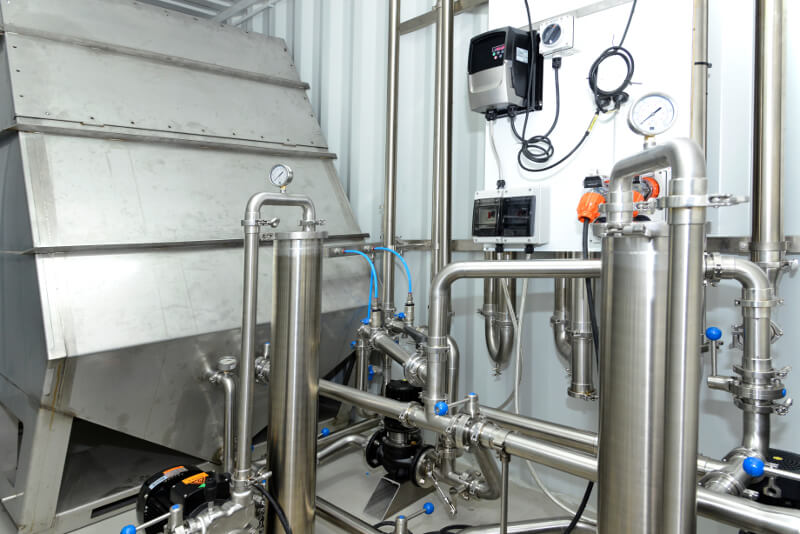

FORSI Effluent Recycling System

The FORSI Effluent Recycling System is a complete, closed loop effluent recycling system to take dairy effluent from the cowshed yard and process into a clean, clear, pathogen, nutrient free liquid. This liquid can be recycled and reused as wash down water for the cowshed yard or irrigated to the pasture without any negative environmental effects.

Forsi Innovations has spent the last seven years developing an effluent recycling system. This system is built to help every dairy farmer meet the ever changing regulations from authorities for dairy effluent system compliance. This system will eliminate the need for compliance, as the system will meet all regulations for years to come.

The system will also eliminate the need for large storage ponds; this in turn will save on valuable land that would be otherwise wasted.

Please contact us to discuss your requirements.

How does the FORSI Effluent Recycling System work?

The system comprises of 4 steps:

  • Solids separation
  • Suspended solids removal
  • Water polishing
  • Sterilization
